BMW 7 Series: Adjusting Glass Slide/Tilt Sunroof Cover
Ideal setting
- Distance:
- Distance (A) between lid and roof at front and rear must be the
same.
- Insert special tool 00 9 341 between gasket and cover.
This check (sliding in and pulling out the special tool) must be subject to
tightness
- Height:
- Front - flush to 1 mm deeper
- Rear - flush to 1 mm higher
.png)
Fig. 1: Identifying Distance Between Lid And Roof At Front And Rear
Adjusting the glass slide/tilt sunroof cover
Remove GAITER on left and right.
Close glass slide/tilt sunroof cover again (zero position).
Slacken screws (1) on left/right little by little.
Until glass slide/tilt sunroof cover (2) can still just be moved.
.png)

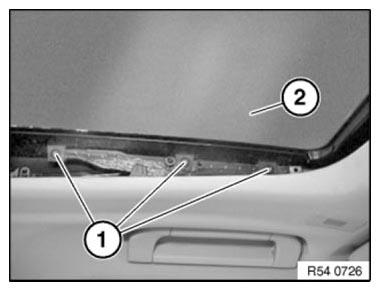

Fig. 2: Identifying Sunroof Cover With Screws
Height adjustment
Adjust height of glass slide/tilt sunroof cover (1) to roof (2) using special
tool 00 9 315 (gap dimension wedge).
Press glass slide/tilt sunroof cover at front and rear up or down until ideal
position is reached.
.png)
Fig. 3: Adjusting Height Of Glass Slide To Roof Using Special Tool 00
Distance setting
Slide glass slide/tilt sunroof cover towards front/rear until ideal position
is obtained.
When the ideal setting is reached:
- Tighten screws (1)
Tightening torque: 54 12 2AZ.
- Check function and adjustment of glass slide/tilt sunroof cover (2).
- Carry out INITIALIZATION
.png)
Fig. 4: Identifying Sunroof Cover With Screws
OPENING OR CLOSING GLASS SLIDE/TILT SUNROOF (MANUALLY AND IN EVENT OF
A TECHNICAL FAULT)
In event of a technical fault in drives:
- Replace drive with gearing at front or rear.
Manually opening or closing:
Necessary preliminary work
- Remove ROOF SWITCH CLUSTER
Initiate manual movements of guide element via the drives using an offset
hexagon socket key.
OVERVIEW OF GLASS SLIDE/TILT SUNROOF
.png)
Fig. 5: Identifying Components Of Glass Slide/Tilt Sunroof
- Glass slide/tilt sunroof cover
- Seal for slide/tilt sunroof lid
- Gaiter
- Sliding trim
- Wind deflector
- Drive unit
- Mechanism: actuator/spacer
- Water gutter
- Corner section, rear
- Seal for frame
- Glass slide/tilt sunroof (frame)
- Adjustment, initialization
