BMW 7 Series: Air Cleaner

REPLACING BOTH AIR FILTER ELEMENTS (N63)

Necessary preliminary tasks:

  • Turn off ignition
  • Remove ACOUSTIC COVER

NOTE: Description relates to the left intake filter housing. Procedure for the right side is identical.

Release clamp (1).

Tightening torque 13 62 9AZ.

Disconnect plug (2) on air-mass sensor.

Air Cleaner
Fig. 128: Identifying Air-Mass Sensor Plug And Mounting Clamps

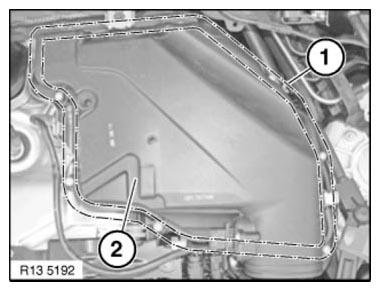

Release screws along line (1).

Tightening torque 13 62 8AZ.

Remove air filter cover (2).

Air Cleaner
Fig. 129: Identifying Air Filter Cover With Mounting Screws

Remove air filter insert.

Installation: Clean upper and lower sections of intake filter housing from inside.

Replacing air filter element.

Replacing both air filter elements (N63)

Air Cleaner
Fig. 130: Identifying Air Filter
