BMW 7 Series: Crimping Stop Parts

Notes

Necessary preliminary work:

  • Cutting cables to length and strip insulation

Special tools for wiring harness repairs.

Spare parts for vehicle electrical system (stop parts and housings):

  • Sourcing reference: BMW Parts Service.
  • Refer to Service Information SI 2 04 07 341

1. Crimping stop parts up to 2.5 mm 2

Crimping Micro Quadlock System contacts (MQS).

  • Special tool 61 4 320
    Crimping Micro Power Quadlock contacts (MPQ).
  • Special tool 61 4 325
    Crimping miscellaneous stop parts up to 2.5 mm2
  • Special tool 61 4 328
    Refer to Service Information SI 2 04 06 293.

2. Crimping stop parts including and over 2.5 mm 2

Crimping load current contacts (LSK 8).

  • Special tool 61 0 210
    Crimping SLK 2.8.
  • Special tool 61 0 220
    Refer to Service Information SI 2 02 05 194.
    Crimping double spring contact (DFK 40)
    Crimping MAK 8
  • Special tool 61 0 230
  • Refer to Service Information SI 2 07 05 233

Checking crimping

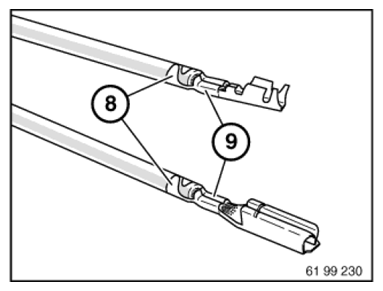

Check insulation crimping (8) and wire crimp (9) against following illustrations to ensure crimps are correctly located.

NOTE: Illustration shows butt connectors and contact sleeves for comb connectors knocked on one side. The crimping procedure is identical here.

Plug Connection, Terminal, Fuse Box
Fig. 148: Identifying Crimping Insulation And Wire Crimp

Correct crimping:

Visible conductor end (10).

Visible insulation end (11).

Plug Connection, Terminal, Fuse Box
Fig. 149: Identifying Conductor And Insulator Ends

Incorrect crimping:

Conductor end (10) inserted too far.

Insulation end (11) in wire crimp.

If necessary, repeat crimping with a new contact.

Plug Connection, Terminal, Fuse Box
Fig. 150: Incorrect Crimping (Conductor End Inserted Too Far)

Incorrect crimping:

Conductor end (10) not visible.

Insulation end (11) not visible.

If necessary, repeat crimping with a new contact.

Plug Connection, Terminal, Fuse Box
Fig. 151: Incorrect Crimping (Conductor End Not Visible)

CUTTING OFF, STRIPPING INSULATION AND CUTTING OPTICAL FIBRES TO LENGTH

Notes

To cut off, strip insulation and cut optical fibres to length, use pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) 61 4 320 from crimping set.

NOTE: Pliers (1) open automatically as far as they will go when handles are pressed together.

Plug Connection, Terminal, Fuse Box
Fig. 152: Identifying Hand Pliers With Crimping Head (61 4 320)

Cutting optical fibre

Open pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

Plug Connection, Terminal, Fuse Box
Fig. 153: Removing Optical Fibre Using Plier

Stripping insulation from optical fibre

Open pliers (1).

Open lever (2) in direction of arrow.

Plug Connection, Terminal, Fuse Box
Fig. 154: Opening Lever

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

Plug Connection, Terminal, Fuse Box
Fig. 155: Closing Clamping Lever

Cutting optical fibre to length

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

Plug Connection, Terminal, Fuse Box
Fig. 156: Pulling Pin

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation: Make sure blade (1) is correctly seated on locating points (2).

Plug Connection, Terminal, Fuse Box
Fig. 157: Identifying Locating Points On Blade

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

Plug Connection, Terminal, Fuse Box
Fig. 158: Removing Optical Fiber

CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES

Stripped length:

STRIPPED LENGTH REFERENCE CHART

Plug Connection, Terminal, Fuse Box

INSTALLING FAN CONNECTOR FOR RETROFITTING/REPAIRS

Notes

NOTE: The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid of fan connectors.

The case can no longer be ordered. Order individual parts for wiring harness repair through BMW Parts Service.

Plug Connection, Terminal, Fuse Box
Fig. 159: Identifying Special Tools For Vehicle Electrical System Repairing

Choose contact sleeve (up to 4 mm2 ) in accordance with wire cross-section.

Plug Connection, Terminal, Fuse Box
Fig. 160: Identifying Contact Sleeves

Alternatively:

Choose contact sleeves (up to 2.5 mm2 ) for fan connectors.

Plug Connection, Terminal, Fuse Box
Fig. 161: Identifying Contact Sleeves For Fan Connectors

Cut through wire loop in wiring harness at established point.

Strip insulation from both wire ends.

See repair instructions

CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES

Plug Connection, Terminal, Fuse Box
Fig. 162: Identifying Plier

Crimp contact sleeves on both wire ends.

See repair instructions

CRIMPING ON STOP PARTS

NOTE: If using repair kit for contact sleeves, refer to repair instruction:

BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION.

Plug Connection, Terminal, Fuse Box
Fig. 163: Identifying Crimp Contact Sleeves On Wire End

Crimp connecting cable for retrofitting likewise with contact sleeve.

Plug Connection, Terminal, Fuse Box
Fig. 164: Identifying Crimp Connecting Cable For Retrofitting

Cut required number of poles to length for fan connectors.

Plug Connection, Terminal, Fuse Box
Fig. 165: Identifying Poles

Special tool 61 9 041 (hand crimping tool) in conjunction with 61 9 042 (matrix) are used for pushing contact sleeves onto fan connectors.

See repair instructions

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS.

Plug Connection, Terminal, Fuse Box
Fig. 166: Identifying Special Tool 61 9 041 (Hand Crimping Tool)

Unlock special tool 61 9 041:

Squeeze grips (1) lightly and push unlocking lever (2) in direction of arrow.

Or:

Compress handles as far as they will go, tool unlocks automatically.

Plug Connection, Terminal, Fuse Box
Fig. 167: Pushing Unlocking Lever

Insert prepared fan connectors (3) in special tool 61 9 041/61 9 042.

Plug Connection, Terminal, Fuse Box
Fig. 168: Inserting Fan Connectors In Special Tool (61 9 041 / 61 9 042)

Attach wire with contact sleeve to fan connector.

Plug Connection, Terminal, Fuse Box
Fig. 169: Attaching Wire With Contact Sleeve To Fan Connector

Press crimping tool together and slide contact sleeve firmly home.

Plug Connection, Terminal, Fuse Box
Fig. 170: Pressing Crimping Tool

IMPORTANT: Once contact sleeves have been pushed on, they should not be detached again from the fan connector or reused.

Push on further contact sleeves for potential branching.

Plug Connection, Terminal, Fuse Box
Fig. 171: Identifying Contact Sleeve On Fan Connector

Installation in wet area (engine compartment, wheel arch)

Apply sealing compound on both sides and press into contacts (1).

Fit shrink-fit hose and heat up with hot air blower (2) (approx. 250 ºC).

NOTE: Ensure that fan connector has sufficient contact surface on mounting point.

Do not heat shrink-fit hose on edges of fan connector too strongly, risk of cracking.

Allow shrink-fit hose to cool down until hand-warm. Then press sealing material again into contacts and onto edges of fan connector.

If necessary, carefully heat shrink-fit hose again.

Plug Connection, Terminal, Fuse Box
Fig. 172: Identifying Shrink-Fit Hose With Contacts

Installation in dry area (interior, luggage compartment)

Slide assembled fan connector into insulation housing until it locks into place.

Plug Connection, Terminal, Fuse Box
Fig. 173: Sliding Assembled Fan Connector Into Insulation Housing
