BMW 7 Owners & Service Manuals

BMW 7 Series: Device

Device MW

Replaced by: 0492079

Note: (Fixture) For all rear axle final drives - model year: From 88 - Replaced by 33 1 070.(0 492 079)

Rear Axle
Fig. 1: Identifying Device (331030)

Device MW

Note: For removing and installing rubber mount in support tube of rear axle final drive mounting.

SI number

01 01 89 (989)

Consisting of:

1 = 0492394 Plate

NOTE: (Shaped plate, top) For removing

2 = 0492395 Plate

NOTE: (Shaped plate, top) For pulling in

3 = 0492396 Plate

NOTE: (Shaped plate, bottom) For pulling in

Rear Axle
Fig. 2: Identifying Device (334130)

Minimum set: Mechanical tools Device MW

Note: (Extraction and pulling device) For removing and installing output shaft in drive flange as well as for removing front wheel bearing unit. Replaced by 33 2 200.(0 496 062)

Storage Location

C13
C38
C14

Consisting of:

1 = 0492170 Spindle

NOTE: (Pressure spindle) For pressing out. Series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85 Replaced by 33 2 203.(0 496 066)

1 = 0492171 Bridge

NOTE: Replaced by 33 2 116.(0 492 175)

Rear Axle
Fig. 3: Identifying Device (332110)

1 = 0492172 Shaped part

NOTE: (Shaped part) Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E85, RR1 Replaced by 33 2 117.(0 492 176)

7 = 0492176 Shaped part

NOTE: (Shaped part) Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85 Replaced by 33 2 207/0 496 070

8 = 0492177 Spindle

NOTE: (Spindle for installation) Model series: E31, E52, E53, E60, E61, E65, E66, E67, E83 Replaced by 33 2 205.(0 496 068)

9 = 0492178 Spindle

NOTE: For installing/model series: E36, E46 Replaced by 33 2 206.(0 496 069)

4 = 0492173 Spindle

NOTE: For installing/model series: E30 Replaced by 33 2 204/0 496 067

5 = 0492174 Nut

NOTE: (Nut with bearing) Series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, RR1 Replaced by 33 2 208/0 496 071

6 = 0492175 Bridge

NOTE: New version 09/98 Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, E90, RR1 Replaced by 332 201/0 496 063

Device MW

Note: For extracting and press-fitting the rubber mount in the trailing arm.

SI number

Rear Axle
Fig. 4: Identifying Device (334100)

Device MW

Note: For removing and installing the rubber mount in the wishbone

SI number

01 01 89 (989)

Consisting of:

1 = 0492384 Sleeve

NOTE: (Support sleeve) For pressing out

2 = 0492385 Sleeve

NOTE: (Press-out sleeve)

3 = 0492386 Sleeve

NOTE: (Press-in sleeve)

4 = 0492387 Shaped element

NOTE: For pressing in

Rear Axle
Fig. 5: Identifying Device (334110)

Minimum set: Mechanical tools Device MW

Note: For removing and installing output shaft in rear axle final drive.

Storage Location

C22
B22
A22

SI number

01 22 06 (307)

Consisting of:

Rear Axle
Fig. 6: Identifying Device (335120)

5 = 0495857 Shaped element

1 = 0495853 Basic body

2 = 0495854 Bolt

NOTE: (Knurled screw with synchronizing key)

3 = 0495855 Rod

4 = 0495856 Shaped element

NOTE: (Shaped element) Shaped element (bearing shell)

7 = 0496795 Shaped part

NOTE: For driving output shaft into rear axle final drive.

6 = 0496765 Shaped part

NOTE: For pressing output shaft out of rear axle final drive.

In conjunction with: 33 5 120

Minimum set: Mechanical tools Device MW

Note: For removing and installing ball joint and rubber mount in semi-trailing arm

Storage Location

B14

SI number

01 10 90 (288)

Consisting of:

1 = 0492323 Sleeve

NOTE: (Spacer sleeve) For pulling out/series: E36, E46

Rear Axle

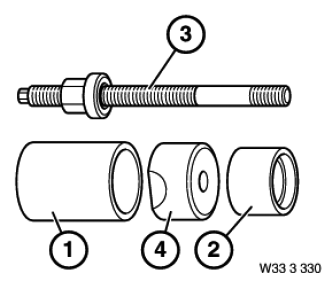

Fig. 7: Identifying Device (333330)

2 = 0492324 Sleeve

NOTE: (Extraction sleeve) Series: E36, E46

4 = 0492326 Sleeve

NOTE: (Spacer sleeve) For installing the ball joint, series: E31, E36, E38, E39, E46, E65, E66, E85

3 = 0492325 Spindle

NOTE: (Spindle with thrust nut) Replaced by 33 3 010/0 496 552

Device MW

Note: For gripping output shafts when press-fitting constant-velocity joint

Storage Location

C23

SI number

01 06 94 (801)

Consisting of:

1 = 0492166 Frame

2 = 0492167 Shell

Rear Axle

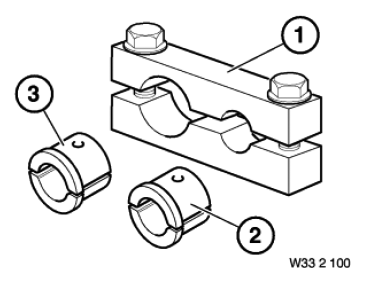

Fig. 8: Identifying Device (332100)

NOTE: (shells) 2 pcs. Diameter 30 mm - model series: E38/model: 730i

3 = 0492168 Shell

NOTE: (shells) 2 pcs. Diameter 35 mm - model series: all, except E38

Device MW

Note: For removing inner wheel bearing races on rear axle

SI number

01 05 99 (426)

Consisting of:

1 = 0493816 Basic body

2 = 0493817 Spindle

3 = 0493818 Key

Rear Axle
Fig. 9: Identifying Device (334400)

NOTE: (wrench)

4 = 0493819 Key

NOTE: (wrench)

5 = 0493820 Pliers

NOTE: (clamping ring (45...51 mm) )

6 = 0493821 Pliers

NOTE: (clamping ring (50...55 mm) )

7 = 0494617 Pliers

NOTE: (clamping ring (55...61 mm) ) Model series: E67

8 = 0496538 Ring

NOTE: (clamping ring) Model series: F01, F02 See SI: 01 18 08 (482)

9 = 0496539 Synchronizing key

NOTE: Series: F01, F02 See SI: 01 18 08 (482)

Device MW

Note: For removing and installing rubber mounts in rear axle support mounting.

Storage Location

B26

SI number

01 18 08 (482)

Consisting of:

Rear Axle
Fig. 10: Identifying Device (330000)

1 = 0496397 Washer

NOTE: (Shaped washer) Removing rubber mount. Beginning from 10/2010 only available as tool set 33 0 000 (0496389).

2 = 0496398 Washer

NOTE: (Shaped washer) Installing rubber mount. Beginning from 10/2010 only available as tool set 33 0 000 (0496389).

Device MW

Note: For removing and installing rubber mounts in rear axle final drive mounting at front.

SI number

01 18 08 (482)

Consisting of:

1 = 0496500 Washer

NOTE: Removing rubber mount

Rear Axle
Fig. 11: Identifying Device (330020)

2 = 0496501 Bush

NOTE: Removing rubber mount

3 = 0496502 Washer

NOTE: (Shaped washer) Installing rubber mount

4 = 0496503 Washer

NOTE: Installing rubber mount

5 = 0496504 Guide

NOTE: (Guide bush) for pulling in rubber mount

6 = 0496505 Spindle

NOTE: (Spindle M12x1.5) spindle length 205 mm

7 = 0496506 Nut

NOTE: (Nut M12x1.5 with thrust bearing)

Device MW

Note: For removing and installing rubber mount of rear axle final drive mounting at rear.

SI number

01 18 08 (482)

Consisting of:

1 = 0496507 Washer

NOTE: Removing rubber mount

2 = 0496508 Bush

NOTE: Removing rubber mount

Rear Axle
Fig. 12: Identifying Device (330030)

3 = 0496509 Washer

NOTE: Installing rubber mount

4 = 0496510 Washer

NOTE: (Shaped washer) Installing rubber mount

5 = 0496511 Spindle

NOTE: (Spindle M14x1.5)

6 = 0496512 Nut

NOTE: (Nut M14x1.5 with thrust bearing)

Device MW

Note: For removing and installing ball joint mount in wishbone.

SI number

01 01 89 (989)

Consisting of:

1 = 0492389 Shaped element

NOTE: For hanging up when pressing out the ball joint

2 = 0492390 Bush

NOTE: (Pressure bushing) For pressing the ball joint out of the wishbone

3 = 0492391 Shaped element

NOTE: For hanging up the wishbone when pressing in the ball joint

4 = 0492392 Bush

NOTE: (Pressure bushing) For pressing the ball joint into the wishbone

Rear Axle
Fig. 13: Identifying Device (334120)

Minimum set: Mechanical tools Device MW

Note: For removing rubber mount in rear axle support.

Storage Location

A8
B8

SI number

01 02 99 (417)

Consisting of:

Rear Axle
Fig. 14: Identifying Device (334140)

1 = 0492398 Tube

NOTE: (threaded pipe)

2 = 0492399 Shaped part

NOTE: (shaped part) 2 pieces Model series: E38, E39, E46

3 = 0492400 Shaped part

NOTE: (Shaped part) Replaced by 31 2 313 (0 495 802)

4 = 0492401 Rod

NOTE: (Guide rod)

5 = 0492402 Rod

NOTE: (guide rod) With thread dog point

6 = 0492403 Plate

NOTE: (locating plate) With screws

= 0492404

7 = 0492404 Synchronizing key

NOTE: (synchronizing key (2 pieces) ) With screws - model series: E38, E39, E46

8 = 0492405 Shaped part

NOTE: (shaped part) 2 pieces Model series: E39/2, E65, E67, RR1

9 = 0492406 Synchronizing key

NOTE: (synchronizing key (2 pieces) ) With countersunk screw - model series: E39/2, E65, E67, E87
