BMW 7 Series: Handle

Handle MW

Note: (pull handles) Cutting wire pull handles fore removing rear, quarterlight and side windows

SI number

01 13 03 (001)

Body Equipment

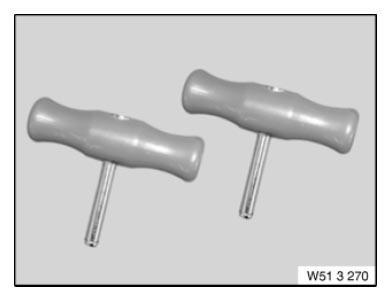

Fig. 6: Identifying Handle (513270)

HOISTING WINCH

Note: for windscreen/rear window locating fixture on gantry crane

SI number

6 04 03 (046)

HOISTING WINCH

Note: for side window locating fixture on gantry crane

SI number

6 04 03 (046)

HOLDER

Holder MW

Note: (Window glass holder) For holding the front and rear window glass when mounting the window glass/replaced by 51 3 010. (0 492 609)

Lever MW

Note: (Lever (2 x) ) Lever for unlocking the jacking points.

Storage Location

C26

SI number

01 24 08 (501)

Body Equipment

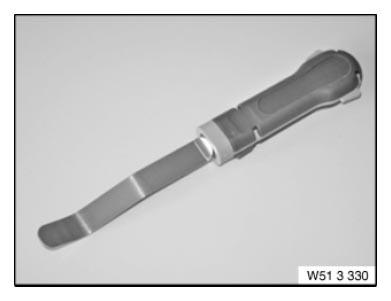

Fig. 7: Identifying Lever (513330)

PROTECTION

Note: Replaces protection 51 2 193

ROLLER

Roller MW

Note: (Contact roller) For pressing sound insulation into doors; various rubber seals and covers

Storage Location

B19

SI number

01 07 06 (271)

Consisting of:

1 = Handle

2 = Roller

Body Equipment

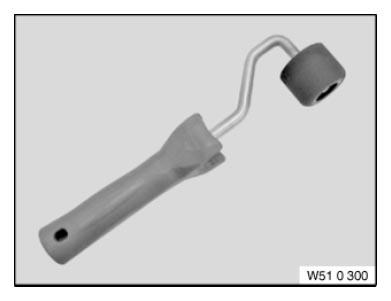

Fig. 8: Identifying Roller (510300)

SIDE WINDOW LOCATING FIXTURE

Note: for gantry crane

SI number

6 04 03 (046)

Body Equipment

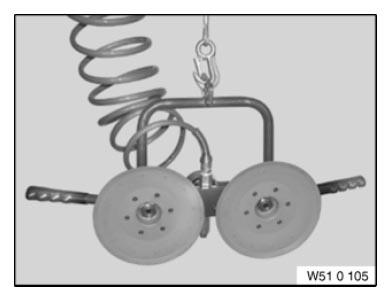

Fig. 9: Identifying Side Window Locating Fixture (51 0 105)

SIPHON

Siphon MW

Note: (Siphon (2 pieces) ) For removal and installation of the window glass. Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635).

SI number

01 05 86 (604)

Consisting of:

Body Equipment

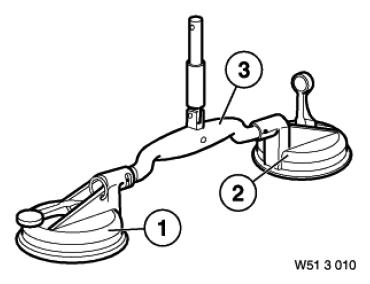

Fig. 10: Identifying Siphon (513010)

1 = Suction cup

NOTE: With elongated hole, suspension can be moved around all axles. Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635)

2 = Suction cup

NOTE: With bore hole, suspension can only be moved in longitudinal direction. Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635).

3 = Handle

NOTE: (Grab handle): Is replaced by 81 64 2 184 377, see Service Information (bulletin) 08 01 10 (635).

2 = 0493267 Plate

NOTE: (rubber plate without joint)

2 = Joint

NOTE: (joint without rubber plate)

SUCTION CUP

Note: Gantry crane

SI number

6 04 03 (046)
