BMW 7 Series (F01/F02) 2008-2015 Service Manual / General Electrical System / Insert Holder

BMW 7 Series: Insert Holder

REMOVING AND INSTALLING/REPLACING 12V SOCKET IN CENTER ARMREST STORAGE COMPARTMENT

Necessary preliminary tasks

  • REMOVE CENTRE ARMREST STORAGE COMPARTMENT

Remove 12V socket with special tool 61 0 250.

Insert Holder
Fig. 279: Removing 12V Socket Using Special Tool (61 0 250)

REMOVING AND INSTALLING/REPLACING 12V SOCKET IN FRONT STORAGE COMPARTMENT

Necessary preliminary tasks

  • REMOVE FRONT STORAGE COMPARTMENT

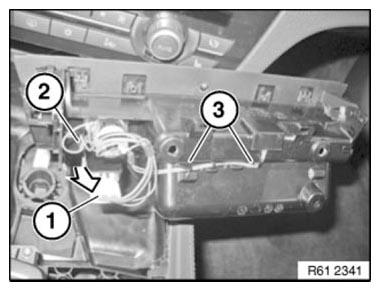

Disconnect plug connection (1). Unlock plug and pull out of mounting in direction of arrow.

Unlock socket light (2) and pull out.

Expose cable (3).

Installation: Ensure correct routing of cables.

Insert Holder
Fig. 280: Pulling Out Plug Out Of Mounting

Open cap (1) towards top.

Insert Holder
Fig. 281: Pressing Retaining Lugs Together Using Tool

Remove 12V socket with special tool 61 0 250.

Insert Holder
Fig. 282: Removing 12V Socket Using Special Tool (61 0 250)
