BMW 7 Series: Removing And Installing/Replacing Front Speaker Carrier (Instrument Panel)

Notes

Unclip trim (1) from latching mechanisms with special tool 00 9 325.

Speaker And Cover
Fig. 31: Removing Trim From Latch Mechanisms Using Special Tool (00 9 325)

Release screws (1).

Remove speaker carrier (2) and disconnect associated plug connection.

Speaker And Cover
Fig. 32: Identifying Screws And Speaker Carrier

Installation

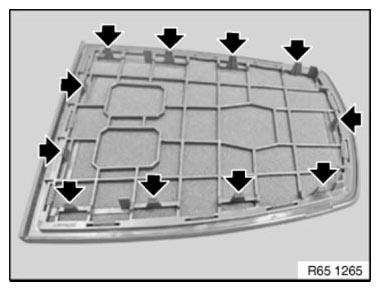

Marked retaining lugs must not be damaged.

Speaker And Cover
Fig. 33: Identifying Retaining Lugs

Replacement

  • Disconnect plug connection (1).
  • Remove MIDRANGE SPEAKER (2).
  • Remove TWEETER (3).

Speaker And Cover
Fig. 34: Identifying Plug Connection, Mid-Range Speaker And Tweeter

REMOVING AND INSTALLING/REPLACING REAR MID-RANGE SPEAKER (IN STORAGE SHELF)

Notes

Lever out speaker cover (1) with special tool 00 9 325.

Speaker And Cover
Fig. 35: Removing Speaker Cover Using Special Tool (00 9 325)

Installation note: Retaining lugs on speaker cover (1) must not be damaged.

Speaker And Cover
Fig. 36: Identifying Retaining Lugs On Speaker Cover

Release screws (1).

Remove mid-range speaker (2) in direction of arrow from speaker (3).

Disconnect plug connection underneath.

Remove mid-range speaker (2).

Speaker And Cover
Fig. 37: Identifying Screws, Speaker And Mid-Range Speaker

REMOVING AND INSTALLING/REPLACING REAR SPEAKER CARRIER (IN STORAGE SHELF)

Notes

Lever out speaker cover (1) with special tool 00 9 325.

Speaker And Cover
Fig. 38: Removing Speaker Cover Using Special Tool (00 9 325)

Installation note: Retaining lugs on speaker cover (1) must not be damaged.

Speaker And Cover
Fig. 39: Identifying Retaining Lugs On Speaker Cover

Release screws (1).

Take out speaker box (2).

Disconnect plug connection underneath and remove speaker box (2).

Installation note: Speaker box (2) must be exactly seated in groove of storage shelf.

Speaker And Cover
Fig. 40: Identifying Screws And Speaker Box

REMOVING AND INSTALLING/REPLACING REAR TREBLE SPEAKER (IN REAR SHELF)

Installation:

  • Remove REAR SPEAKER CARRIER

Disconnect plug connection (1).

Unclip tweeter (2) from speaker carrier (3) and remove in direction of arrow.

Installation: Ensure correct cable routing.

Speaker And Cover
Fig. 41: Identifying Plug Connection, Unclip Tweeter And Speaker Carrier

REMOVING AND INSTALLING/REPLACING SPEAKER (MIDRANGE SPEAKER, DOOR AT REAR)

Necessary preliminary tasks

  • Remove REAR DOOR TRIM PANEL.

Disconnect plug connection (1).

Unscrew nuts (2).

Remove speaker (3).

Speaker And Cover
Fig. 42: Identifying Plug Connection, Nuts And Speaker

REMOVING AND INSTALLING/REPLACING SPEAKER (TWEETER, DOOR AT REAR)

Necessary preliminary tasks

  • Remove REAR DOOR TRIM PANEL.

Disconnect plug connection (1).

Unlock retaining lugs (2).

Remove speaker (3) in direction of arrow.

Speaker And Cover
Fig. 43: Identifying Plug Connection, Retaining Lugs And Speaker

REMOVING AND INSTALLING/REPLACING SPEAKER (TWEETER, IN INSTRUMENT PANEL)

Necessary preliminary tasks

  • Remove FRONT SPEAKER CARRIER

Disconnect plug connection (3).

Unclip speaker (1) at marked points and remove from carrier (2).

Speaker And Cover
Fig. 44: Identifying Plug Connection, Speaker And Carrier

REMOVING AND INSTALLING/REPLACING SPEAKER (TWEETER, TRIANGULAR MIRROR SECTION, LEFT OR RIGHT)

Unclip window frame cover (1) in front area as shown.

Speaker And Cover
Fig. 45: Identifying Window Frame Cover

Unclip mirror triangle cover (1) as shown from side window frame cover (2).

Installation: Marked retaining lugs must be correctly engaged in guides on side window frame (2) Ensure mirror triangle cover (1) is correctly seated.

Speaker And Cover
Fig. 46: Identifying Mirror Triangle Cover And Window Frame Cover

Disconnect plug connection (1).

Remove sound insulation (3) from speaker cover (2).

Installation

Renew fastening (4) if necessary.

Speaker And Cover
Fig. 47: Identifying Plug Connection, Sound Insulation And Speaker Cover

Unclip tweeter (1) at retaining lugs (2) and remove from mirror triangle cover (3).

Installation: Retaining lugs (2) must not be damaged.

Speaker And Cover
Fig. 48: Identifying Tweeter, Mirror Triangle Cover And Retaining Lugs

REMOVING AND INSTALLING/REPLACING SPEAKERS (MIDRANGE SPEAKER, FRONT DOOR LEFT AND RIGHT)

Necessary preliminary work

  • Remove front DOOR TRIM PANEL.

NOTE: Secure speaker against falling out.

Release nuts (1) and remove speaker (2) in direction of arrow from door trim (3).

Speaker And Cover
Fig. 49: Identifying Nuts, Speaker And Door Trim
