BMW 7 Series: Removing And Installing/Replacing Left Headlight Vertical Aim Adjuster

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.

Work on the entire xenon lighting system (control unit, ignition unit with lamp) may only be carried out by specialist personnel.

Necessary preliminary work

  • Remove headlight.

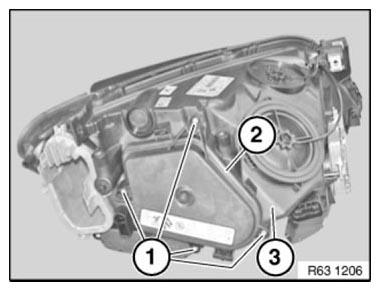

Release screws (1) on cover (2) and remove from headlight (3).

Tightening torque 63 12 4AZ.

Eadlights
Fig. 59: Identifying Headlight And Cover Screws

Release screws (1).

Disconnect plug connection (2).

Snap headlight vertical aim adjuster (3) out of mounting.

NOTE: Opening cover (4) makes it easier to feed in and engage vertical aim adjuster (3).

Eadlights
Fig. 60: Identifying Plug Connection And Screws

Engage ball head of vertical aim adjuster (1) in mounting (2).

Eadlights
Fig. 61: Identifying Ball Head Of Vertical Aim Adjuster In Mounting

After installation

  • ADJUST HEADLIGHTS

REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT (ADAPTIVE HEADLIGHT)

Operation is described in: Removing and installing LEFT HEADLIGHT

REMOVING AND INSTALLING/REPLACING RIGHT HEADLIGHT VERTICAL AIM ADJUSTER

Operation is described in: REMOVING AND INSTALLING LEFT HEADLIGHT VERTICAL AIM ADJUSTER

REMOVING AND INSTALLING/REPLACING RIGHT TURN INDICATOR INSERT

Operation is described in: Removing and installing/replacing LEFT TURN INDICATOR INSERT

REPLACING BULB FOR FRONT RIGHT SIDE LIGHT (XENON HEADLIGHT)

Operation is described in: Replacing BULB FOR SIDE LIGHT, FRONT LEFT

REPLACING BULB FOR FRONT RIGHT TURNING LIGHT

Operation is described in: Replacing BULB FOR FRONT LEFT TURNING LIGHT

REPLACING BULB FOR LEFT XENON HEADLIGHT (WITH IGNITION UNIT)

Operation is described in: Replacing IGNITION UNIT FOR LEFT XENON HEADLIGHT

REPLACING BULB FOR RIGHT XENON HEADLIGHT (WITH IGNITION UNIT)

Operation is described in: Replace IGNITION UNIT FOR LEFT XENON HEADLIGHT.
