BMW 7 Series: Removing And Replacing The Catalytic Converter Cylinder 1-4 (N63)

WARNING: Risk of burning! Only perform this repair work on an engine that has cooled down.

Necessary preliminary work

• Remove ACOUSTIC COVER.
• REMOVE BOTH INTAKE SILENCER HOUSINGS.
• Remove EXHAUST SYSTEM.
• Remove both control sensors.
• Remove both monitoring sensors.

Picture shows the left side, carry out the operation for the right side in an identical way.

Release screws (1).

Remove cable clips on left and right.

Fig. 38: Identifying Cable Clips On Left And Right With Screws

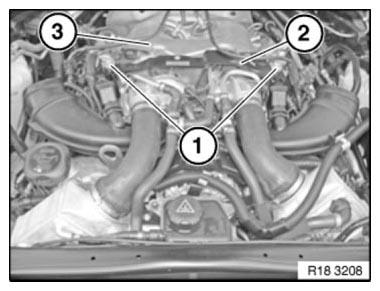

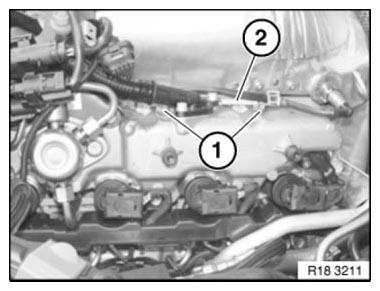

Remove rubber mounts (1) and release screws underneath.

Tightening torque 13 71 5AZ.

Remove cable clip (2).

Remove the HEAT SHIELD (3) at top.

Fig. 39: Identifying Rubber Mounts, Cable Clip And Heat Shield At Top

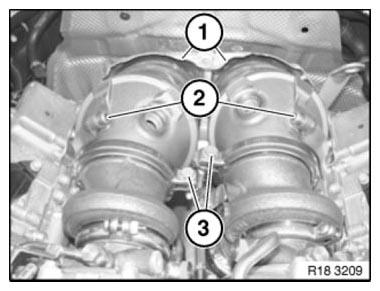

Remove heat shield (1) at rear left and right.

This is described further below in the instructions.

Release screws (2) on catalytic converter.

Tightening torque 18 32 4AZ.

Loosen the clamps (3) from the catalytic converter.

Replace clamps (3).

Tightening torque 18 32 1AZ.

Installation note: Clamps must be installed with the screws toward the inside (Figure). Otherwise, a top heat shield can no longer be installed.

Fig. 40: Identifying Heat Shield At Rear Left And Right, Clamp With Screw On Catalytic Converter

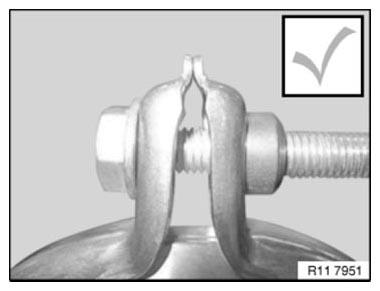

Installation note: The ends of the V-band clamps must rest parallel to each other.

Tightening torque 18 32 1AZ.

Fig. 41: Identifying V-Band Clamps

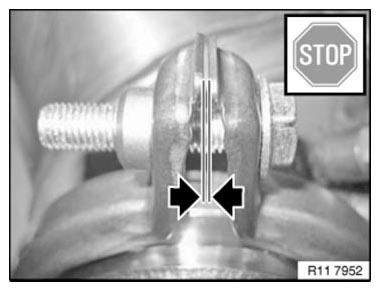

Installation note: If you can see a gap between the ends of the V - band clamps, release and then repeat the screw connection.

Tightening torque 18 32 1AZ.

Fig. 42: Locating V - Band Clamps Gap

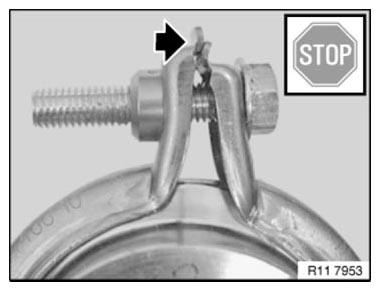

Installation note: If the ends of the V-band clamps are positioned under each other, release and then repeat the screw connection.

Tightening torque 18 32 1AZ.

Fig. 43: Locating V - Band Clamps Position

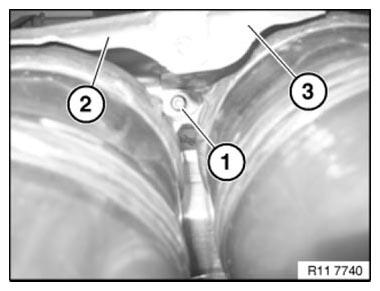

Release screw (1) from heat shields (2) and (3).

Screw (1) is located between the catalytic converters.

Fig. 44: Identifying Screw On Heat Shields And Catalytic Converters

NOTE: Picture shows the engine removed.

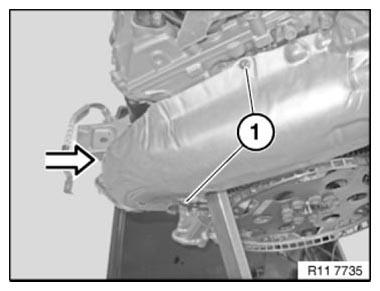

Release screws (1) on left heat shield.

Unclip left heat shield and remove.

Fig. 45: Identifying Screws On Left Heat Shield

NOTE: Picture shows the engine removed.

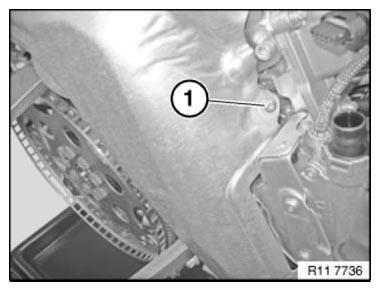

Release screw (1) on right heat shield.

Fig. 46: Identifying Screws On Right Heat Shield

NOTE: Picture shows the engine removed.

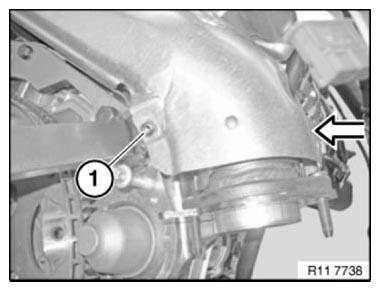

Release screw (1) on heat shield at bottom right.

Unclip heat shield and remove.

Fig. 47: Identifying Screws On Right Heat Shield At Bottom

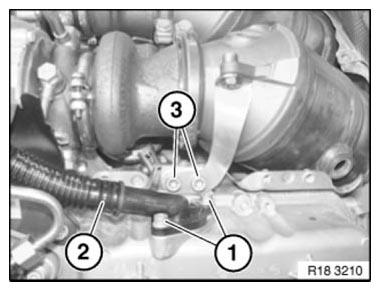

Picture shows the left side, carry out the operation for the right side in an identical way.

Release screws (1).

Detach hose (2) from cylinder head cover.

Release screws (3) on holder.

Tightening torque 18 32 2AZ.

Fig. 48: Identifying Hose On Cylinder Head Cover And Screws On Holder

NOTE: Picture shows the engine removed.

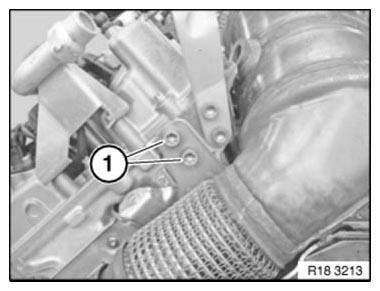

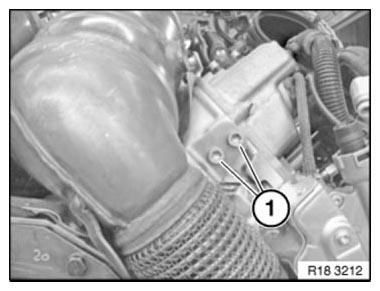

Loosen screws (1) on the catalytic converter cylinders 1-4 on the back of the cylinder head.

Tightening torque 18 32 3AZ.

Fig. 49: Identifying Screws On Catalytic Converter Cylinders 1-4 On Back Of Cylinder Head

NOTE: Picture shows the engine removed.

Release screws (1) on catalytic converter, cylinders 5 - 8, rear, at cylinder head.

Tightening torque 18 32 3AZ.

Fig. 50: Identifying Screws On Catalytic Converter, Cylinders 5--8, Rear, At Cylinder Head

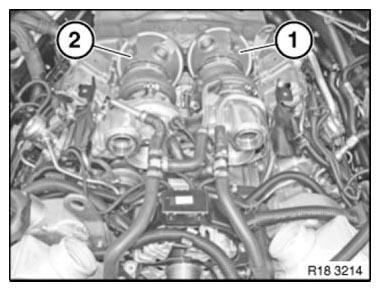

NOTE: To remove the catalytic converter cylinders 1-4, it is necessary to remove the catalytic converter cylinders 5-8.

1. Remove catalytic converter for cylinders 5 - 8 (1).
2. Remove catalytic converter for cylinders 1 - 4 (2).

Installation note: Picture shows the engine removed.

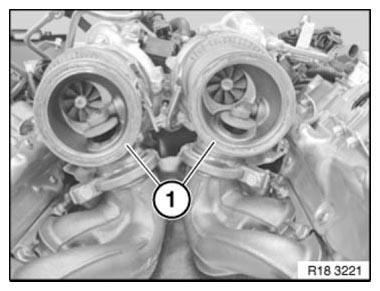

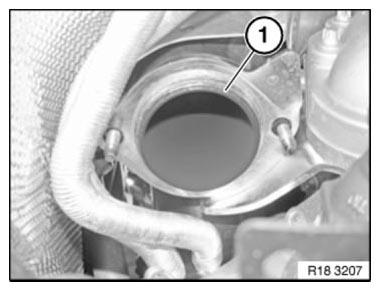

Replace the seals (1) on the exhaust turbocharger.

Fig. 52: Identifying Seals On Exhaust Turbocharger

Installation note: Picture shows the left side, the procedure for the right side is identical.

Clean sealing surfaces.

Replace gasket (1).

Fig. 53: Identifying Gasket

Assemble engine.

Check exhaust system for leak tightness.
