Necessary preliminary work:
Open screw lock (1).
Release screws (2) and remove protective cap (3).
Tightening torque: 1, 5 Nm

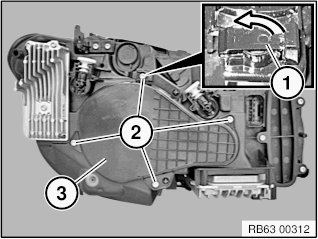

Fig. 35: Opening Screw Lock To Release Screws And Protective Cap
Installation note: Check seal (1). Replace protective cap (2) if necessary.
IMPORTANT: Risk of damage due to moisture penetration!
Fig. 36: Identifying Protective Cap Seal
Unlock plug connection (1) and disconnect.
Unfasten screws (2).
Tightening torque: 1, 5 Nm Remove LED fan (3).
Fig. 37: Identifying LED Fan, Screws, And Connector
REPLACING LEFT LED MAIN LIGHT MODULE LEFT
IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION ).
Necessary preliminary work:
Release screws (1).
Tightening torque: 1, 65 Nm Remove LED main light module (2).
Fig. 38: Identifying LED Main Light Module And Screws
Installation note: Gasket (1) for LED main light module (2) must not be damaged and must be installed free from grease.
Make sure LED main light module (2) is correctly installed.
Fig. 39: Gasket For LED Main Light Module
Replacement: Carry out vehicle PROGRAMMING/CODING.
REPLACING LEFT CORNERING LIGHT LED MODULE
Necessary preliminary work:
Release screws (1).
Tightening torque: 1, 65 Nm Remove LED module (2).
Fig. 40: Identifying LED Module And Screws
Release screws (1).
Remove reflector (2) and disconnect plug connection underneath.
Remove LED module (3).
Installation note: Seal (4) for LED module (3) must not be damaged and must be installed free from grease.
Fig. 41: Identifying LED Module, Seal, Reflector, And Screws
REPLACING RIGHT LED MAIN LIGHT MODULE
Operation is described in:
REPLACING LEFT LED MAIN LIGHT MODULE LEFT
REPLACING RIGHT CORNERING LIGHT LED MODULE
Operation is described in:
REPLACING LEFT CORNERING LIGHT LED MODULE
