BMW 7 Series: System Components
Lane Departure Warning
In the F01/F02, a front facing video camera and the corresponding button in the BEFAS control panel indicate that the vehicle is equipped with the lane departure warning.
.png)

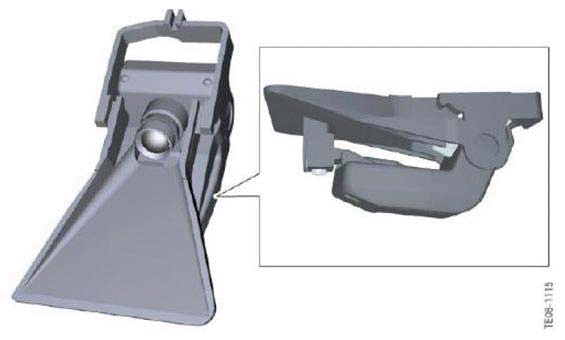

Fig. 102: Video Camera For Lane Departure Warning
.png)
Fig. 103: Display Lane Departure Warning Control Panel
The image data recorded by the video camera are transmitted to the KAFAS control unit along an LVDS data line. The video camera and the control unit are the components that are fundamental to the lane departure warning's range of functions.
.png)
Fig. 104: Identifying KAFAS Control Unit With PT-CAN And Lane Departure
Warning Camera With
LVDS
KAFAS CONTROL UNIT WITH PT-CAN REFERENCE CHART
- KAFAS control unit with PT-CAN
- Lane departure warning video camera with LVDS connection to KAFAS control unit
.png)
Fig. 105: Identifying KAFAS Control Unit Driver Footwell And Central Module
KAFAS CONTROL UNIT DRIVER FOOTWELL REFERENCE CHART
- KAFAS control unit Driver's footwell
- Central gateway module (ZGM)
High-beam Assistant
In combination with the lane departure warning, the high-beam assistant function shares the same video camera and the same KAFAS control unit.
.png)
Fig. 106: Identifying KAFAS Control Unit With PT-CAN And Lane Departure
Warning Camera With
LVDS
KAFAS CONTROL UNIT WITH PT-CAN REFERENCE CHART
- KAFAS control unit with PT-CAN
- Lane departure warning video camera with LVDS connection to KAFAS control unit
