BMW 7 Series: System Overview

The Active Blind Spot Detection system is available as an option on the F01/F02.

Active Blind Spot Detection System
Fig. 78: Overview Of Active Blind Spot Detection System On F01/F02

ACTIVE BLIND SPOT DETECTION SYSTEM COMPONENTS CHART

  1. Driver's door mirror
  2. Steering column switch cluster
  3. Steering wheel with steering wheel module and vibration actuator
  4. Junction box electronics and front fuse carrier
  5. Front passenger door mirror
  6. Integrated Chassis Management control unit
  7. Operating unit for driver assistance systems
  8. Central gateway module
  9. Footwell module

Active Blind Spot Detection System

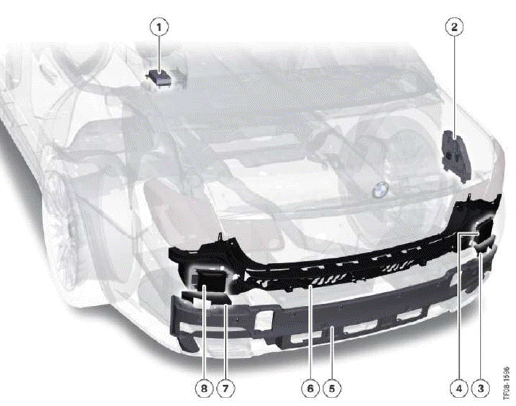

Fig. 79: Identifying Components Of Active Blind Spot Detection System On F01/F02 (Rear View)

REAR VIEW COMPONENTS REFERENCE CHART

  1. Integrated Chassis Management control unit
  2. Rear fuse carrier in the luggage compartment
  3. Bracket for shielding the right-hand radar sensor
  4. Right-hand master radar sensor
  5. Rear bumper deformation elements
  6. Center guide
  7. Bracket for shielding the left-hand radar sensor
  8. Left-hand SWW2 radar sensor

Bus System Overview

Active Blind Spot Detection System
Fig. 80: Bus System Overview Of Active Blind Spot Detection System On F01/F02

BUS SYSTEM OVERVIEW LEGENDS

ASP_BF - Front passenger door mirror
ASP_FA - Driver's door mirror
BE_FAS - Operating unit for driver assistance systems
FRM - Footwell module
ICM - Integrated Chassis Management
LRE - Steering wheel module
SWW - Master radar sensor for the Active Blind Spot Detection system
SWW2 SWW2 - radar sensor for the Active Blind Spot Detection system
SZL - Steering column switch cluster
ZGM - Central gateway module

System Schematic Circuit Diagram

Active Blind Spot Detection System
Fig. 81: Active Blind Spot Detection System Schematic

SYSTEM SCHEMATIC CIRCUIT DIAGRAM LEGENDS

  1. Central gateway module
  2. Vibration actuator
  3. Steering wheel module
  4. Steering column switch cluster
  5. Fuse for the driver/front passenger door mirrors (front fuse carrier, junction box electronics)
  6. Warning light in the driver's door mirror
  7. Footwell module
  8. Operating unit for driver assistance systems
  9. Warning light in the front passenger door mirror
  10. Integrated Chassis Management
  11. (Not for US)
  12. Fuse for the radar sensors in the Active Blind Spot Detection system (rear fuse carrier in the luggage compartment)
  13. SWW2 radar sensor for the Active Blind Spot Detection system
  14. Master radar sensor for the Active Blind Spot Detection system
