BMW 7 Series: Carrying Out Steering Angle Sensor Adjustment
IMPORTANT: In vehicles with active steering, steering angle sensor adjustment is integrated in the service function "INITIAL OPERATION/ADJUSTMENT FOR ACTIVE STEERING " and must not be carried out separately!
NOTE: Steering angle sensor adjustment must be carried out:
- after replacement of following components:
- Steering column switch cluster
Connect vehicle to BMW diagnosis system.
Select and carry out steering angle sensor adjustment under Service functions.
OVERVIEW OF REAR LIGHTS
.png)
Fig. 195: Overview Of Rear Lights
- Rear light, left (side panel)
- Rear light, left (on tail panel)
- Reflector, rear
- Additional brake light
OVERVIEW OF SWITCHES IN CENTER CONSOLE/STORAGE COMPARTMENT
.png)
Fig. 196: Overview Of Switches In Centre Console/Storage Compartment
- Switch, hotel setting
- Base plate
- LED for centre armrest storage compartment
- Connecting socket, USB/audio interface
- Switch for parking brake
- Centre console operating unit
- Controller
- Gear selector switch
PUNCHING CONTOUR FOR SEAT MEMORY SWITCH INTO REAR DOOR TRIM PANEL
Notes
Necessary preliminary tasks
- Remove REAR DOOR TRIM PANEL
Position special tool 51 4 107 or 51 4 108 on the recess in the door trim panel storage compartment (1).
Mark cutouts (2).
.png)
Fig. 197: Identifying Special Tool (51 4 107 Or 51 4 108)
Use special tool 51 4 109 to punch holed\non the previously marked points in the door trim panel (1).
.png)
Fig. 198: Punching Hole On Door Trim Panel Using Special Tool (51 4 109)
IMPORTANT: For punching work on F01/F02, special tools 51 4 103 and 51 4 104 must be used as the cutting equipment.
.png)
Fig. 199: Identifying Special Tools (51 4 103 And 51 4 104)
51 4 101 Slide special tool through holes stamped into door trim panel (1).
NOTE: Guide pins of punching tool are coded. Distortion is thus not possible.
.png)

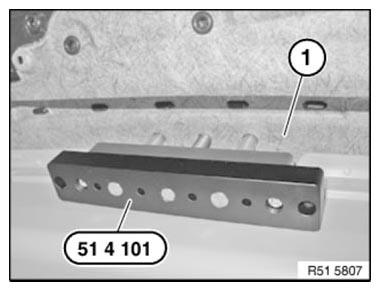

Fig. 200: Sliding Special Tool (51 4 101) Through Door Trim Panel Holes
51 4 105 Mount special tools and on punching tool 51 4 106(1).
Compress punching tool (1) via spindle.
.png)
Fig. 201: Compressing Punching Tool
51 4 111 Press punching remnants with special tool from rear out of punching tool.
NOTE: This work step is necessary to prevent the cutting surfaces from being damaged during a renewed punching operation.
.png)
Fig. 202: Identifying Special Tool (51 4 111)
