BMW 7 Series: Front collision mitigation
Concept
The system may prevent some accidents. In the event of an accident, the system may reduce impact speed.
The system sounds a warning before an imminent collision and activates brakes independently, if needed.
General information
Depending on the equipment version, the system is controlled by the following sensors:
- Camera in the area of the interior mirror.
- Radar sensor in the front bumper.
The system issues a two-phase warning of a possible risk of collision with vehicles at speeds above approx. 3 mph/5 km/h. The timing of warnings may vary with the current driving situation.
With the vehicle approaching another vehicle intentionally, the approach control warning and braking are delayed in order to avoid false system reactions.
Depending on the vehicle equipment, the Driver Attention Camera in the instrument cluster captures the driver's field of vision. Additionally, the system checks for visual impairments. Field of vision and visibility also affect the timing of the warnings.
Safety information
.gif)
Warning
The system cannot serve as a substitute for the driver's personal judgment in assessing visibility and traffic situation. There is a risk of accident.
Adjust driving style to traffic conditions. Watch traffic closely and actively intervene where appropriate.
Warning
Indicators and warnings cannot serve as a substitute for the driver's personal judgment. Due to its limits, the system may not issue warnings or reactions, or these may be issued late or in a manner that is not consistent with their normal use. There is a risk of accident. Adjust driving style to traffic conditions. Watch traffic closely and actively intervene where appropriate.
Warning
Due to system limits, individual functions can malfunction during tow-starting/towing with the Intelligent Safety systems activated. There is a risk of accident. Switch all Intelligent Safety systems off prior to tow-starting/towing.
Overview
Button in the vehicle
.gif)
.gif)
Intelligent Safety
Camera
.gif)
The camera is installed near the interior mirror.
Keep the windshield in front of the interior mirror clean and clear.
With radar sensor
.gif)

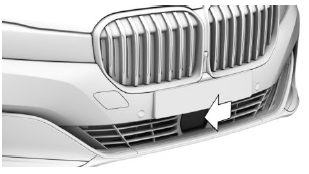

The radar sensor is located in the lower area of the front bumper.
Always keep radar sensor clean and unobstructed.
