BMW 7 Series: Intake Silencer
REMOVING AND INSTALLING/REPLACING BOTH INTAKE FILTER HOUSINGS (N63)
Necessary preliminary work
- Switch off ignition.
- Remove ACOUSTIC COVER
NOTE: Description for intake filter housing. Procedure on right side identical.

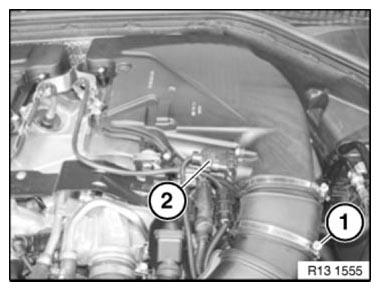

Release clamps (1).
Tightening torque 13 62 9AZ.
Disconnect connector (2) at the hot film air mass meter.
Release clamp (3).
Unclip oxygen sensor cable from intake filter housing.
Detach intake air filter housing from intake port and pull off upwards.
.png)
Fig. 124: Pulling Intake Air Filter Housing Upwards
REPLACING BOTH AIR FILTER ELEMENTS (N63)
Necessary preliminary tasks
- Turn off ignition
- Remove ACOUSTIC COVER
NOTE: Description relates to the left intake filter housing. Procedure for the right side is identical.
Release clamp (1).
Tightening torque 13 62 9AZ.
Disconnect plug (2) on air-mass sensor.
.png)
Fig. 125: Identifying Air-Mass Sensor With Plug
Release screws along line (1).
Tightening torque 13 62 8AZ.
Remove air filter cover (2).
.png)
Fig. 126: Identifying Air Filter Cover With Mounting Screws
Remove air filter insert.
Installation: Clean upper and lower sections of intake filter housing from inside.
Replacing air filter element.
.png)
Fig. 127: Identifying Air Filter
