BMW 7 Series: Replace Electrical Steering Box (EPS)
IMPORTANT: Steering box:
Check connection of steering box for corrosion, clean contacts if
necessary.
The steering box must be replaced if the corrosion is too far advanced.
Connecting line:
In the event of moisture/corrosion inside the two plug connections, check
the
insulation of the connecting line. If the insulation reveals any
noticeable/striking features, partial replacement will be necessary. Otherwise
it
will be sufficient to replace the contacts or connector housing.
NOTE: In a warranty case you must always provide a fault memory printout,
even
where there is no fault entry, with the defective part.
Necessary preliminary work:
- Disconnect BATTERY EARTH LEAD
NOTE: High-current-carrying wiring laid with terminal 30 (80 A fuse).
- Remove underbody protection at FRONT and REAR
- Remove COVER FOR STEERING ASSEMBLIES on left and right
- Remove stiffening plate
- Remove TRACK ROD END on both sides from swivel bearing
- Remove LOWER SECTION of steering shaft from steering box
- Version with Dynamic Drive:
- Remove ANTI-ROLL BAR LINK ON RIGHT OF ANTI-ROLL BAR
Unlock plug connection (1) and disconnect.
.png)
Fig. 56: Identifying Connectors

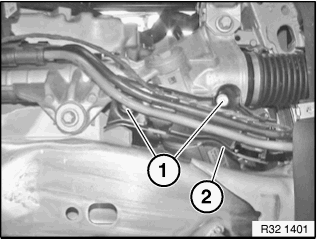

Release screws (1).
Lay holder (2) with wiring to one side.
.png)
Fig. 57: Identifying Holder And Screws
Release screws (1) and tie anti-roll bar (2) to front axle support.
Tightening torque 31 35 1AZ.
.png)
Fig. 58: Identifying Anti-Roll Bar Link With Screws
Release screws (1).
Tightening torque 32 00 1AZ
Installation note:
Replace screws.
.png)
Fig. 59: Identifying Steering Box Screws
IMPORTANT: Risk of damage!
Plug connection (1) on electrical steering box must not be damaged when
removing.
Remove steering box with wiring harness downward.
.png)
Fig. 60: Identifying Con
Installation note:
Modify TRACK ROD END on left and right.
After installation:
- Carry out PROGRAMMING/ENCODING
- Teach in END STOP SOFTWARE
- Perform CHASSIS / WHEEL ALIGNMENT CHECK
