BMW 7 Series: Replacing Center Mount Gaiter
Necessary preliminary work
- Remove PROPELLER SHAFT.
NOTE: The propeller shaft is balanced.
The front and rear propeller shafts must be reassembled in the same position.

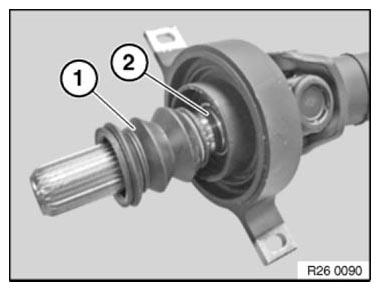

Detach gaiter (1) from groove (2).
Mark front propeller shaft (3) and rear propeller shaft (4) in one plane.
.png)
Fig. 34: Marking Front Propeller Shaft And Rear Propeller Shaft In One Plane
Pull apart propeller shaft.
.png)
Fig. 35: Pulling Propeller Shaft Apart
Installation note: If necessary, insert new clamping ring (1) into front propeller shaft (2).
.png)
Fig. 36: Identifying Front Propeller Shaft With Clamping Ring
Release gaiter (1) with screwdriver from groove (2) and pull off over longitudinal splines.
Installation note:
Apply an even coating of grease to longitudinal splines on shaft.
Observe markings and force front propeller shaft onto longitudinal splines (markings must be flush).
Push gaiter (1) during installation into groove (2) and make sure it is firmly fitted.
.png)
Fig. 37: Identifying Gaiter And Groove
