BMW 7 Series: Replacing Power Distribution Box (Luggage Compartment)
WARNING: Observe SAFETY INSTRUCTIONS for handling vehicle battery.
Necessary preliminary work
- Clamp off BATTERY NEGATIVE LEAD
- Disconnect both negative battery cables at F03
- Remove FLAP IN LUGGAGE COMPARTMENT TRIM PANEL on right
- If necessary, remove right WHEEL ARCH PANEL (at F01/F02/03)

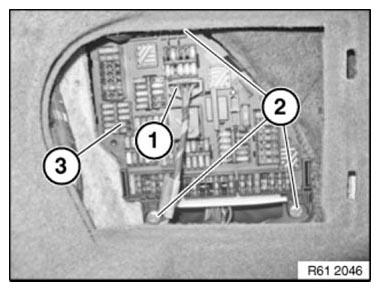

Disconnect plug connection (1).
Unscrew nuts (2).
Remove power distribution box (3).
.png)
Fig. 177: Identifying Power Distribution Box With Plug Connection And Nuts
Disconnect all plug connections.
Remove power distribution box (1).
.png)
Fig. 178: Identifying Power Distribution Box
SPECIAL TOOLS FOR WIRING HARNESS REPAIRS
Notes
Repair range, vehicle electrical system
Single parts for wiring harness repairs*
* Sourcing reference: BMW Parts Department
.png)
Fig. 179: Identifying Special Tools For Vehicle Electrical System Repairing
Release and press-out tool
- Special tool 61 0 300
- Special tool 61 0 400 (MINI N12/N14)
- Special tool 61 1 100 (engine)
Handling:
- INSTRUCTIONS FOR OPENING CONTACTS AND LOCKS of different plug contact
systems
.png)
Fig. 180: Identifying Special Tool (61 0 300)
Cutting to length and stripping insulation from cables
Wire stripper MultiStrip10*
*Sourcing reference
Handling:
- CUTTING CABLES TO LENGTH AND STRIP INSULATION
.png)
Fig. 181: Identifying Plier
Crimping stop parts (small contacts) and butt connectors
- Tool without crimping head
- Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO
LENGTH)
- Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
- Crimping head (CRIMPING MQS CONTACTS)
- Crimping head (CRIMPING MPQ CONTACTS)
.png)
Fig. 182: Identifying Crimping Heads
- Replacement blade (face-cutting fibre-optic cables)
- Replacement blade with tool (insulation stripping unit)
- Universal crimping head
Crimping stop parts (large contacts) and butt connectors
- Special tool 61 0 200 (crimping set)
- Special tool 61 0 210 (matrix set SLK 8)
- Special tool 61 0 220 (matrix set SLK 2.8)
- Special tool 61 0 230 (matrix set MAK 8/DFK4)
- Special tool 61 0 240 (butt connector 4.0 - 6.0 mm2 )
.png)
Fig. 183: Identifying Special Tools
TREATING CABLES AND FIBRE-OPTIC CABLES
Notes
NOTE: Special tools referred to in the repair instructions below are
contained in the
following special tool kits:
SPECIAL TOOLS DESCRIPTION CHART
.png)
Subject of repair instructions
- SPECIAL TOOLS FOR WIRING HARNESS REPAIRS
- CUTTING CABLES TO LENGTH AND STRIP INSULATION
- Crimping stop parts (contacts)
- BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION
- COMB CONNECTOR FOR RETROFITTING/REPAIRS
- Cutting to length and stripping insulation from optical fibres and
crimping optical fibres
