BMW 7 Series: Spindle

Spindle MW

Note: (Spindle with nut) For device 33 0 000, for removing and installing rubber mounts of rear axle support mounting.

Storage Location

C25
B25

SI number

01 18 08 (482)

Consisting of:

Rear Axle

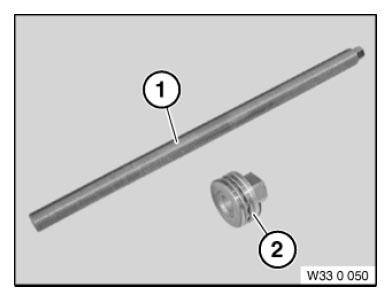

Fig. 37: Identifying Spindle (330050)

1 = 0496523 Spindle

NOTE: (Spindle M18x1.5, length 365 mm)

2 = 0496524 Nut

NOTE: (Nut M18x1.5 with thrust bearing)

Minimum set: Mechanical tools Spindle MW

Note: (spindle TR12 with nut) For installing and removing rubber mounts, see "In conjunction with".

SI number

01 16 08 (476)

Consisting of:

3 = 0496555 Nut

NOTE: (nut M12x1.5 (high wall) )

Rear Axle
Fig. 38: Identifying Spindle (333010)

1 = 0496553 Spindle

NOTE: (spindle TR12)

2 = 0496554 Nut

NOTE: (nut TR12 with thrust bearing)

Minimum set: Mechanical tools Spindle MW

Note: (spindle TR20 with nut) For installing and removing rubber mounts, see "In conjunction with".

SI number

01 16 08 (476)

Consisting of:

1 = 0496535 Spindle

NOTE: (spindle TR20 (length 300 mm) )

3 = 0496551 Nut

NOTE: (nut TR20)

2 = 0496536 Nut

NOTE: (nut TR20 with thrust bearing)

Rear Axle
Fig. 39: Identifying Spindle (334300)

SYNCHRONIZING KEY

Synchronizing key MW

Note: (Synchronizing key (2 pieces) ) For removing and installing rubber mount in rear axle support.

Storage Location

A25

SI number

01 18 08 (482)

Consisting of:

1 = 0496402 Synchronizing key

Rear Axle

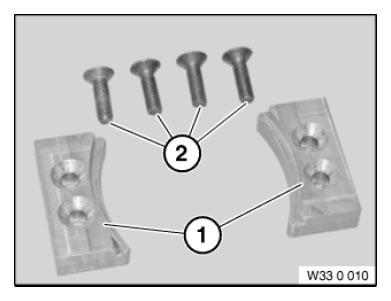

Fig. 40: Identifying Synchronizing Key (330010)

NOTE: (Synchronizing keys (2 pieces) )

2 = 0496403 Bolt

NOTE: (Countersunk screws M6x20 (4 pieces) )

THRUST PIECE WITH SPLINED KEY

Thrust piece with splined key

Rear Axle
Fig. 41: Identifying Thrust Piece With Splined Key (33 5 014)
