BMW 7 Series: Tool

TOOL

Tool MW

Note: (Press-out/-in tool set) For pressing the rubber mount out of and into the control arm special tools 33 3 202 and 33 3 203 for E87 and E90

Storage Location

B32

SI number

01 05 90 (207)

Consisting of:

1 = 0492261 Bush

NOTE: For accommodating control arm when pressing out rubber mount Series: E31

2 = 0492262 Thrust piece

NOTE: For pressing out rubber mount Series: E31, E46, E85, F01, F02

3 = 0492263 Sleeve

NOTE: (Spacer sleeve) For pressing rubber mount into control arm Series: E31, E46, E85, F01, F02

Rear Axle

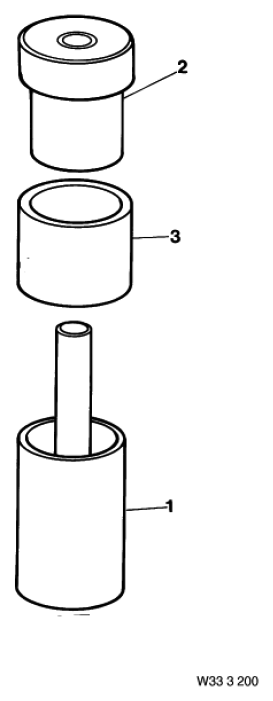

Fig. 42: Identifying Tool (333200)

TOOL SET

Minimum set: Mechanical tools Tool set MW

Note: Disks/bushes for removing and installing ball joint on rear wheel carrier

Storage Location

B33

SI number

01 06 94 (801)

Consisting of:

1 = 0492432 Tube

Rear Axle
Fig. 43: Identifying Tool Set (334190)

NOTE: (support tube) For removing and fitting

2 = 0492433 Plate

NOTE: (support plate) For removing and fitting

3 = 0492434 Synchronizing key

NOTE: For removing

4 = 0492435 Synchronizing key

NOTE: For installing

WASHER

Minimum set: Mechanical tools Washer MW

Note: For removing and installing output shaft in drive flange, front and rear, as well as for removing front wheel bearing unit

Storage Location

C8
B8

SI number

01 17 03 (012)

Rear Axle
Fig. 44: Identifying Washer (332160)

Rear Axle - Technical Data

GENERAL - TRACK WIDTH

GENERAL - TRACK WIDTH F01/F02/REAR WHEEL STANDARD SUSPENSION

GENERAL - TRACK WIDTH SPECIFICATION

Rear Axle

GENERAL - TRACK WIDTH F01/F02/REAR WHEEL 1 AXLE AIR SPRING

GENERAL - TRACK WIDTH SPECIFICATION

Rear Axle

GENERAL - TRACK WIDTH E92/M3 GTS

GENERAL - TRACK WIDTH SPECIFICATION

Rear Axle

REAR AXLE - RIDE HEIGHT

REAR AXLE - RIDE HEIGHT F01/F02/REAR WHEEL

REAR AXLE - RIDE HEIGHT SPECIFICATION

Rear Axle

Rear Axle

REAR AXLE FINAL DRIVE

REAR AXLE FINAL DRIVE 235L

REAR AXLE FINAL DRIVE SPECIFICATION

Rear Axle

WHEEL BEARINGS

WHEEL BEARINGS SPECIFICATION

Rear Axle
