BMW 7 Series: Electrical Components Wear Indicator
REPLACING A BRAKE PAD SENSOR (FRONT)
IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If an already ground brake pad wear sensor has to be replaced although the minimum brake pad thickness has not yet been reached, it is necessary to file down the new sliding contact with a file to the same length as the ground sliding contact.
Necessary preliminary tasks
- Remove front left WHEEL
Open housing cover.
Disconnect plug connection (1).
.png)
Fig. 112: Identifying Plug Connection

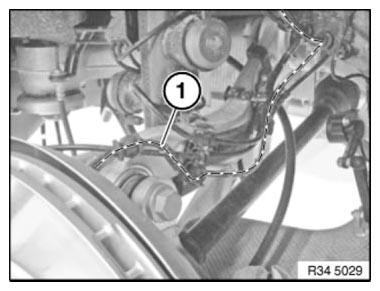

Unclip line (1) along line.
.png)
Fig. 113: Identifying Unclip Line
Disengage line from brake pad wear sensor from holder (1).
Pull brake pad wear sensor (2) in direction of arrow out of brake pad.
Installation:
Make sure brake pad wear sensor (2) is correctly seated in brake pad and holder (1).
.png)
Fig. 114: Identifying Brake Pad Wear Sensor And Holder
REPLACING A BRAKE PAD SENSOR (REAR)
IMPORTANT: The brake pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).
If an already ground brake pad wear sensor has to be replaced although the minimum brake pad thickness has not yet been reached, it is necessary to file down the new sliding contact with a file to the same length as the ground sliding contact.
Necessary preliminary tasks
- Remove rear right WHEEL
Open housing cover.
Disconnect plug connection (1).
.png)
Fig. 115: Identifying Plug Connection
Unclip line (1) along line.
.png)
Fig. 116: Identifying Unclip Line
Disengage line from brake pad wear sensor from holder (1).
Pull brake pad wear sensor (2) in direction of arrow out of brake pad.
Installation:
Make sure brake pad wear sensor (2) is correctly seated in brake pad and holder (1).
.png)
Fig. 117: Identifying Brake Pad Wear Sensor And Holder
