BMW 7 Series: Removing And Installing/Renewing Heat Shield At Top (N63)
Necessary preliminary work
- Remove both INTAKE FILTER HOUSINGS.
- Remove both control sensors.

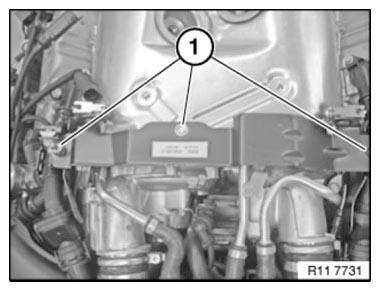

Release screws (1).
Lift out holder.
.png)
Fig. 468: Identifying Holder Screws
Release screw (2).
Tightening torque 11 65 3AZ.
.png)
Fig. 469: Identifying Screws And Heat Shield
Release screw (2).
Tightening torque 11 65 3AZ.
.png)
Fig. 470: Identifying Screws And Heat Shield
Release retaining clip (1).
Detach wire ring (2) and set down behind oxygen sensor.
.png)
Fig. 471: Identifying Retaining Clip And Wire Ring
Release retaining clip (1).
Detach wire ring (2) and set down behind oxygen sensor.
.png)
Fig. 472: Identifying Oxygen Sensor With Wire Ring And Retaining Clip
Release screws (1).
Tightening torque 11 65 3AZ.
NOTE: For purposes of clarity, the graphic shows the oxygen sensor
removed.
.png)
Fig. 473: Identifying Screws
Release screws (1).
Tightening torque 11 65 3AZ.
Lift out heat shield.
.png)
Fig. 474: Identifying Heat Shield Screws
Assemble engine.
