BMW 7 Series: Tire inflation pressure- Tire inflation pressures up to 100 mph/160 km/h
For speeds of up to 100 mph/160 km/h and for optimum driving comfort, note the pressure values in the tire inflation pressure table and adjust as necessary.
.gif)
These pressure values can also be found on the tire inflation pressure label on the driver's door pillar.
Do not exceed a speed of 100 mph/160 km/h.

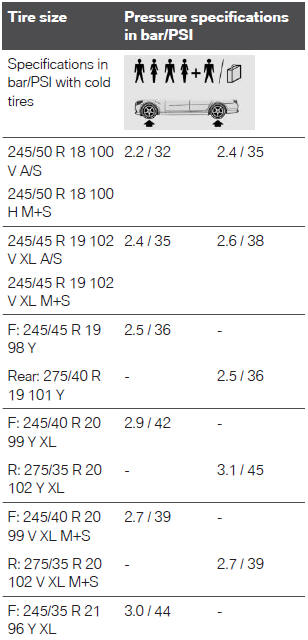

Tire inflation pressure values up to 100 mph/160 km/h
740Li, 740Li xDrive, 750i xDrive, 750Li xDrive
.jpg)
.jpg)
M760Li xDrive
.jpg)
Tire inflation pressures at max.
speeds above 100 mph/160 km/h
Warning
In order to drive at maximum speeds in excess of 100 mph/160 km/h, please observe, and, if necessary, adjust tire pressures for speeds exceeding 100 mph/160 km/h from the relevant table on the following pages. Otherwise, tire damage and accidents could occur.
For speeds over 100 mph/160 km/h and for optimum driving comfort, note the pressure values in the tire inflation pressure table and adjust as necessary.
Tire inflation pressure values over 100 mph/160 km/h
740Li, 740Li xDrive, 750i xDrive, 750Li xDrive
Without high-speed tuning feature
.jpg)
.jpg)
With high-speed tuning feature
.jpg)
.jpg)
M760Li xDrive
Without high-speed tuning feature
.jpg)
.jpg)
With high-speed tuning feature
With M Driver's Package
