BMW 7 Series: Removing And Installing/Renewing Brake Pads On Both Front Disc Brakes

Notes

IMPORTANT:

  • Brake pad wear sensor: after removal it must be replaced (brake pad wear sensor loses its retention capability in the break pad).
  • Retaining spring: for vehicles older than 48 months it is recommended to replace the retaining spring!

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket.

Instead, clean with brake cleaner BMW part no. 83 19 2 154 780 and apply a thin coating of brake pad paste BMW part no. 83 19 2 158 851.

Necessary preliminary work

  • Remove FRONT WHEELS.
  • Remove BRAKE PAD WEAR SENSOR.
  • For F03: Remove brake caliper cover.

NOTE: After completing repair work:

  • Fully depress brake pedal several times so that brake pads contact brake discs.
  • When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
  • Read and comply with notes on BRAKING IN new brake discs/brake pads.
  • When replacing pads, reset CBS display in accordance with factory specification.

Lever out retaining spring (1) in direction of arrow towards rear.

Installation note: Place retaining spring (1) first at top and bottom of brake caliper and then allow to engage in recess (2) of brake caliper housing.

Front Brakes
Fig. 30: Identifying Retaining Spring And Recess

Remove plastic plugs (1).

Front Brakes
Fig. 31: Identifying Plastic Plugs

Unscrew guide bolts (1).

IMPORTANT: Tie brake caliper back and do not allow to hang from brake hose.

Withdraw brake caliper backwards.

Installation note: Only clean guide bolts; do not grease.

Check threads.

Front Brakes
Fig. 32: Identifying Guide Bolts

Replace all guide bolts which are not in perfect condition.

Tightening torque, see FRONT BRAKE.

IMPORTANT: Mark any worn brake pads.

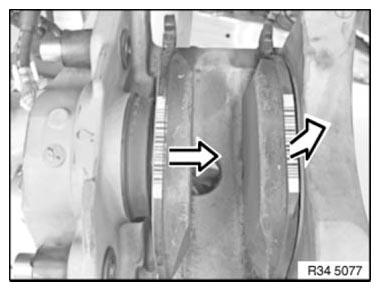

Remove brake pads in direction of arrow.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe minimum thickness of brake pads. Clean brake pads.

Do not apply grease to brake lining backplate.

Front Brakes
Fig. 33: Removing Brake Pads

IMPORTANT: Mark any worn brake pads.

Equipment specification, high-speed brake system.

Remove brake pads in direction of arrow.

In the event of one-sided brake pad wear, do not change brake pads round.

Observe minimum thickness of brake pads.

Clean brake pads.

Front Brakes
Fig. 34: Removing Brake Pads

Do not apply grease to brake lining backplate.

IMPORTANT: When forcing piston back:

  • Pay attention to brake fluid level in expansion tank; brake fluid that spills over will damage paintwork.

Press back brake pads and piston with special tool 34 1 050.

Check minimum brake disc thickness:

  • Position special tool 34 1 280 at three measuring points in area (1) and measure.
  • Compare measuring result and lowest value with setpoint value.

Front Brakes
Fig. 35: Pressing Back Brake Pads And Piston Using Special Tool (34 1 050)

IMPORTANT: New brake pads may only be fitted if the brake disk thickness is greater than the minimum brake disc thickness (MIN TH).

Check dust boot (1) for damage and replace if necessary.

IMPORTANT: Dust boot must not come into contact with brake pad paste as this may cause the dust boot to swell.

Front Brakes
Fig. 36: Identifying Dust Boot, Brake Piston And Brake Pads Surface

Clean contact surface (2) of brake piston and brake pads (3) with brake cleaner and apply a thin coat of brake pad paste.

NOTE: Grease contact surfaces on brake caliper at top and bottom.

So as not to damage the surface coating, if possible do not mechanically clean the guide surfaces for the brake pads on the brake caliper mounting bracket. Instead, clean with brake cleaner and apply a thin coating of Never Seez Compound brake pad paste.

Front Brakes
Fig. 37: Identifying Brake Pads Guide Surfaces On Brake Caliper Mounting Bracket

So as not to damage the surface coating, if possible do not mechanically clean pad guides (1). Instead, clean with brake cleaner and apply a thin coating of Never Seez Compound brake pad paste.

Front Brakes
Fig. 38: Identifying Brake Pad Guides
