BMW 7 Series (F01/F02) 2008-2015 Service Manual / General Electrical System / Switch / Replacing Operating Unit For Seat Adjustment

BMW 7 Series: Replacing Operating Unit For Seat Adjustment

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION).

Necessary preliminary work

  • Remove COVER FROM FRONT SEAT

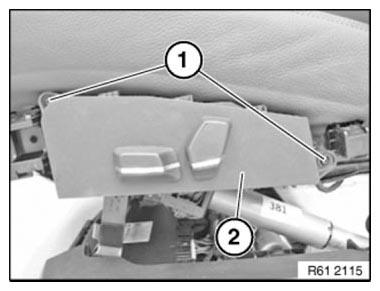

Release screws (1).

Raise operating unit for seat adjustment (2).

Switch
Fig. 257: Identifying Operating Unit With Screws

Disconnect plug connection (1) and remove operating unit for seat adjustment.

Switch
Fig. 258: Identifying Operating Unit Plug Connection

REPLACING REAR PASSENGER COMPARTMENT A/C CONTROL PANEL FAN MOTOR

Necessary preliminary work

  • Remove REAR PASSENGER COMPARTMENT A/C CONTROL PANEL

Release screws (1).

Remove fan motor (3) from A/C control panel (2).

Installation note

Make sure pins (4) are correctly seated on fan motor (3).

Switch
Fig. 259: Identifying A/C Control Panel With Screws, Pins And Fan Motor

REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (REAR)

Notes

Carefully lever out rocker switch (1) using special tool 00 9 317 from the rear door armrest (2).

Disconnect plug connection behind and remove rocker switch (2).

Switch
Fig. 260: Lifting Out Rocker Switch Using Special Tool (00 9 317)

Installation note

Make sure latch mechanisms (1) of rocker switch (2) are correctly seated.

Switch
Fig. 261: Identifying Latch Mechanisms On Rocker Switch
