BMW 7 Series: System Overview
Input/output slide/tilt sunroof
.png)

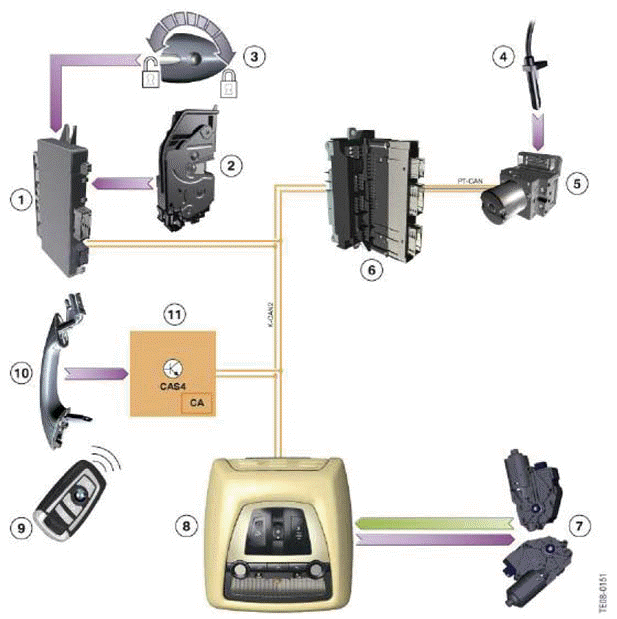

Fig. 31: Slide/Tilt Sunroof Input/Output Diagram
COMPONENTS DESCRIPTION CHART
- Footwell module FRM
- Door contacts (4x) in the vehicle doors
- Driver's door lock barrel
- Wheel speed sensor
- Dynamic stability control
- Junction Box electronics JB PT-CAN Powertrain CAN
- Slide/tilt sunroof motors
- Roof control module
- Identification transmitter
- Outer door handles, driver's side and passenger side
- Car Access System 4 CAS 4
K-CAN2 - Body-CAN2
System Circuit Diagram - Slide/tilt Sunroof
.png)

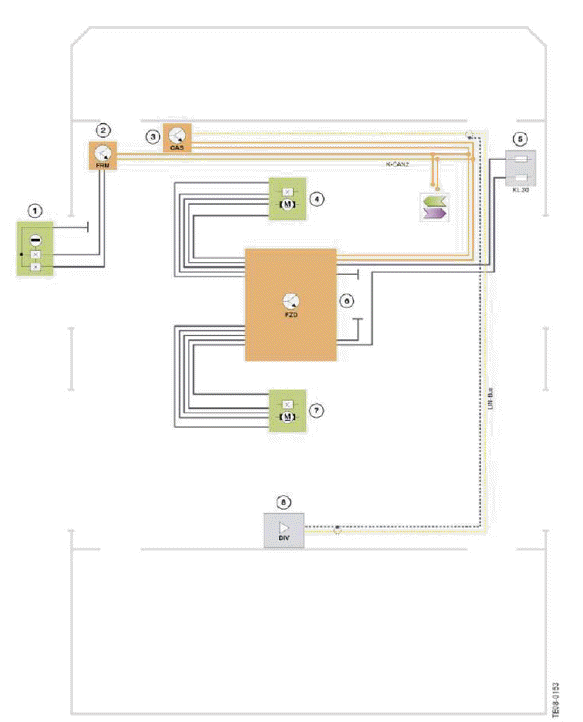

Fig. 32: Slide/Tilt Sunroof System Circuit Diagram
COMPONENTS DESCRIPTION CHART
- Hall sensors, driver's door lock barrel
- Footwell module (FRM)
- Car Access System (CAS)
- Slide/tilt sunroof motor
- Front power distribution box
- Roof control module FZD with button for slide/tilt sunroof
- Slide/tilt sunroof motor
- Remote control receiver in Diversity module
K-CAN2 - Body-CAN2
LIN-Bus - Local Interconnect Network bus
KI. 30 - Terminal 30
K-CAN2 signals at roof control module

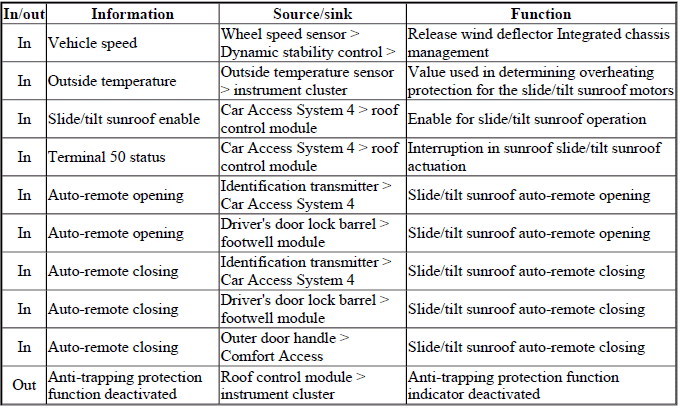

CAR ACCESS SYSTEM K-CAN SIGNALS CHART
.png)
Auto-remote opening and auto-remote closing can be operated from the identification transmitter/remote control or via the lock barrel in the driver's door. This is done by holding down the lock/unlock button until the slide/tilt sunroof is closed/opened.
The lock barrel operates in a similar fashion. The mechanical key must be held in the lock/unlock position until the slide/tilt sunroof is closed/opened.
With comfort access, the slide/tilt sunroof can be closed by touching the touch-sensitive area on the outer door handle. The touch-sensitive area must be touched until the slide/tilt sunroof is closed.
