BMW 7 Series: Sockets
Concept
The lighter socket can be used as a socket for electrical equipment when standby and driveready state are switched on.
General information
The total load of all sockets must not exceed 140 watts at 12 volts.
Do not damage the socket by using non-compatible connectors.
Safety information
.gif)
Warning
Devices and cables in the unfolding area of the airbags, such as portable navigation devices, can hinder the unfolding of the airbag or be thrown around in the car's interior during unfolding.
There is a risk of injury. Make sure that devices and cables are not in the airbag's area of unfolding.
NOTICE
Battery chargers for the vehicle battery can work with high voltages and currents, which means that the 12 volt on-board network can be overloaded or damaged. There is a risk of damage to property. Only connect battery chargers for the vehicle battery to the starting aid terminals in the engine compartment.
NOTICE
If metal objects fall into the socket, they can cause a short circuit. There is a risk of damage to property.

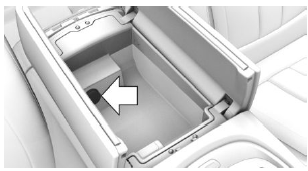

Front center armrest
.gif)
The center armrest contains a socket.
Front center console
.gif)
Push the cover forward until it engages.
A socket is located between the cup holders.
Rear center console
Without rear console: opening and closing
.gif)
One socket is located in the rear center console.
Open: press on the cover.
To close: press the cover closed again.
With rear console: opening and closing
.gif)
Push the cover backward until it engages.
.gif)
A socket is located between the cup holders.
Tap the cover on the handle bar to close it.
With rear console: rear center armrest
.gif)
The center armrest contains a socket.
In the cargo area
.gif)
A socket is located on the right side in the cargo area. Unfold the cover.
